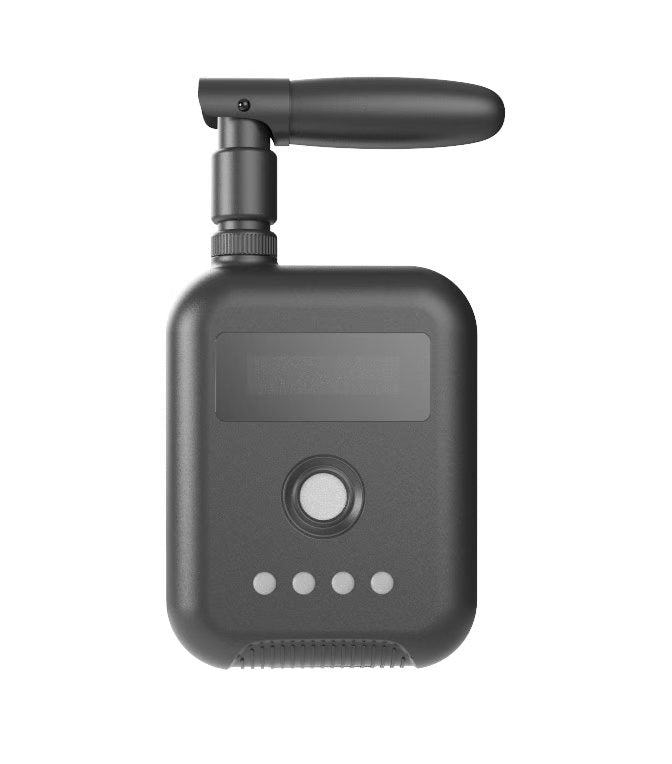

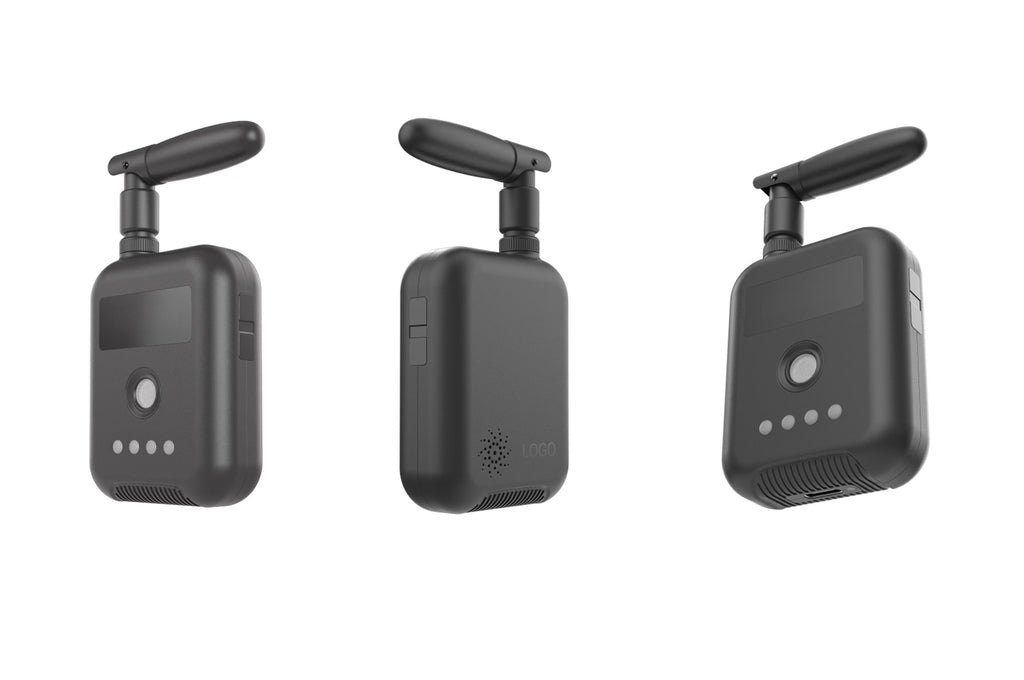

Drone Detection | Mobile Remote ID Receiver

YunScan-Y1 is built for individual duty, temporary security and mobile patrol. Paired with the mobile App over Bluetooth 5.0, it detects UAV spectrum signals within 1.5 km in real time, with target details, alert reception and operator-location navigation; event data syncs to the SaaS cloud platform to form a complete evidence chain. The unit is CNAS, FCC and CE certified.

Specifications

Item	Specification	Notes
I. Detection Performance
Monitoring Type	UAV spectrum broadcast messages	Parses three standards: GB 42590-2023 / ASTM F3411 / ASD-STAN prEN 4709-002
Detection Range	≥1.5km (open field)	Detection of spectrum broadcast signals within 1.5 km
Antenna Coverage	360°	360° omnidirectional detection; wearable mobile use
Frequency Bands	2.4GHz / 5.8GHz dual-band	Simultaneous dual-band scanning
II. Main Control & Hardware
Main Control Unit	High-performance low-power MCU	Dual-core 240MHz, 16MB Flash + 8MB PSRAM, IPEX external antenna connector
Sensors	Dual accelerometers	Wearing-state and motion detection for power management
Power Management	Buck-boost + charge management	Wide-voltage adaptive input, USB-C charging
Interface	0.91-inch OLED + 2700Hz buzzer + RGB LED + physical buttons	Offline status indication and multi-modal alerts
III. Communication & Data
Connectivity	Bluetooth 5.0 (low energy)	Pairs with the mobile App; bound and deployed within 30 seconds
Data Link	YunScan-Y1 → Bluetooth 5.0 → mobile App → 4G/5G → MQTT 5.0 → SaaS cloud platform	Must work with the mobile App; cannot upload independently
Local Storage	20 most recent event records	Event data synced to the SaaS cloud platform as an evidence chain
IV. Structure & Environmental
Dimensions	60mm × 47mm × 20mm	Compact card-sized design
Weight	≤60g	Epaulette, chest-badge, belt and backpack-strap wearing
Battery Life	≥6 hours	Per-charge endurance
Protection Rating	IP54	Daily duty environments
Operating Temperature	-20°C ~ +55°C	Outdoor duty environments
V. Functions
Alert Modes	Vibration + sound + App pop-up	SaaS platform linkage (no-fly-zone / SMS alerts)
Whitelist	Add authorized UAVs on site	Filters false alarms
Incident Response	Incident QR code + map navigation to the operator's location	Target details: model, SN, altitude, speed, heading, operator location
